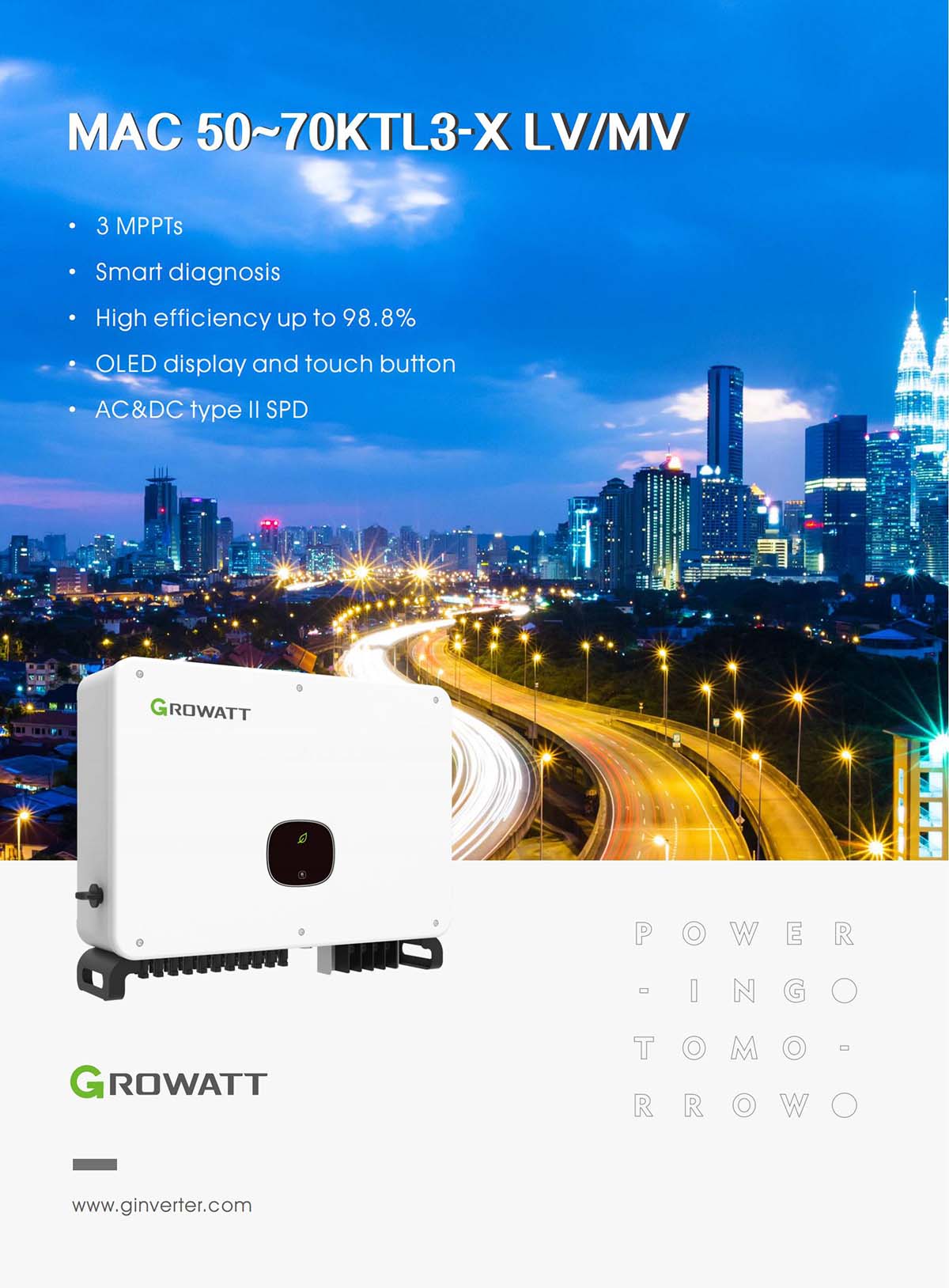

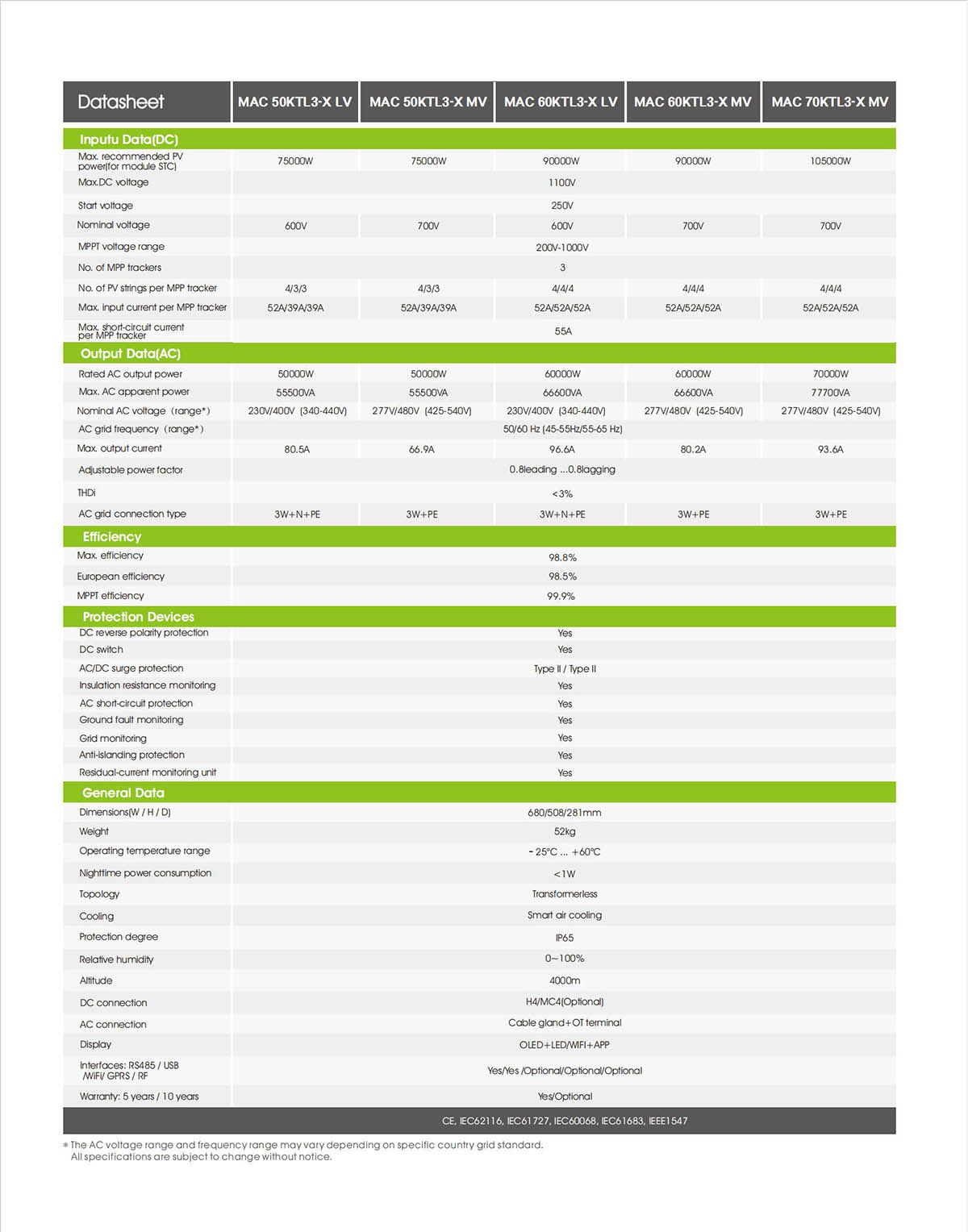

MAC 50~70KTL3-XLV/MV

Colorful touch LCD, IP65 protection degree AC couple to retrofit existing solar system Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 190A 6 time periods for battery charging/discharging Support storing energy from diesel generator

100% unbalanced output, each phase AC couple to retrofit existing solar system Max. 10 pcs parallel for on-grid and off-grid  operation; Support multiple batteries parallel Max. charging/discharging current of 50A High voltage battery, higher efficiency 6 time periods for battery charging/discharging Support storing energy from diesel generator

100% unbalanced output, each phase AC couple to retrofit existing solar system Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel Max. charging/discharging current of 100A High voltage battery, higher efficiency 6 time periods for battery charging/discharging Support storing energy from diesel generator

3 MPPTs  Smart diagnosis High efficiency up to 98.8% OLED display and touch button  AC&DC type II SPD

6 /7MPPTs, fusefree design  High efficiency up to 99% One-click diagnosis String monitoring AC&DC type II SPD AFCI optional

10 MPPTs fusefree design Smart I/V scan and diagnosis Intelligent string monitoring AC&DC type II SPD IP66 protection

Battery ready, up to 30kW  DC/AC ratio up to 2  AFCI function ready  Type II SPD on DC and AC side  24h self-consumption monitoring

Max.efficiency 98.75% Dual MPP trackers Touch key and OLED display Type II SPD on AC and DC side AFCI function optional
