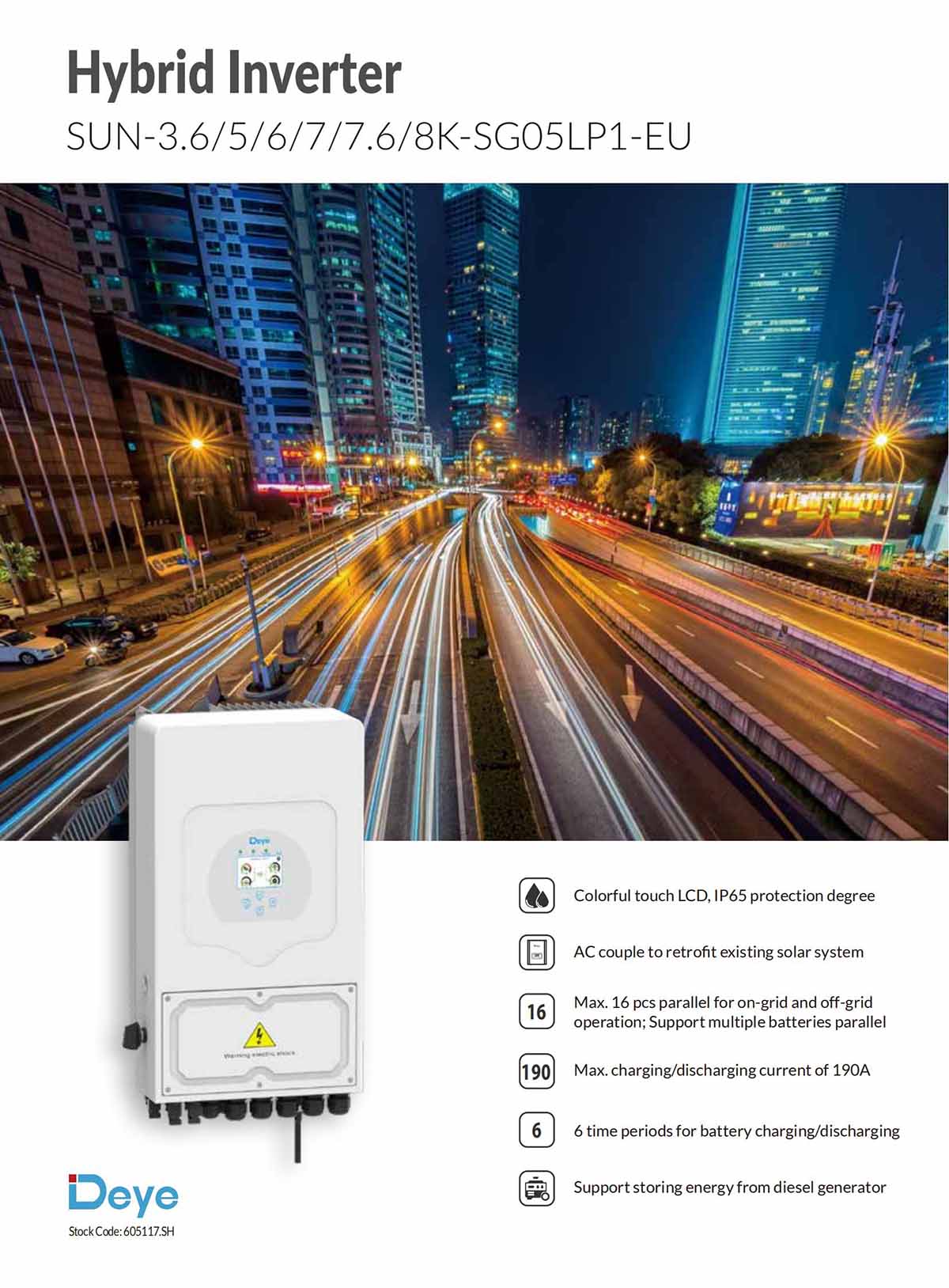

Colorful touch LCD, IP65 protection degree
AC couple to retrofit existing solar system
Max. 16 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

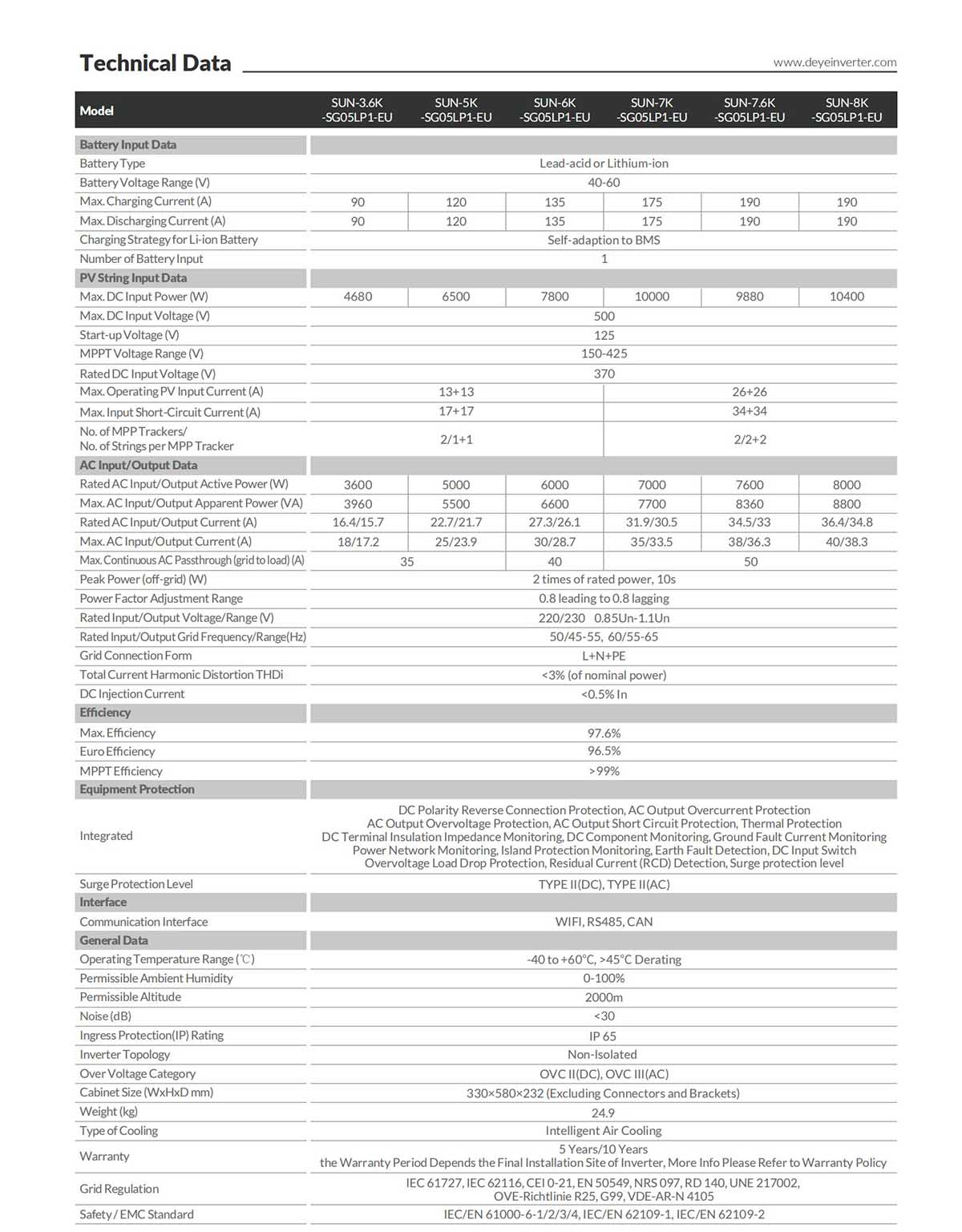

Brand :
DeyeOperating Temperature Range (℃) :
-40 to +60℃, >45℃ DeratingPermissible Ambient Humidity :
0-100%Permissible Altitude :
2000mNoise (dB) :
<30Ingress Protection(IP) Rating :
IP 65Inverter Topology :
Non-IsolatedOver Voltage Category :
OVC II(DC), OVC III(AC)Cabinet Size (WxHxD mm) :
330×580×232 (Excluding Connectors and Brackets)Type of Cooling :
Intelligent Air CoolingWeight (kg) :
24.9Warranty :
5 Years/10 Years the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty PolicyGrid Regulation :
IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105Safety / EMC Standard :
IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2Tel : +86 -13855447433
