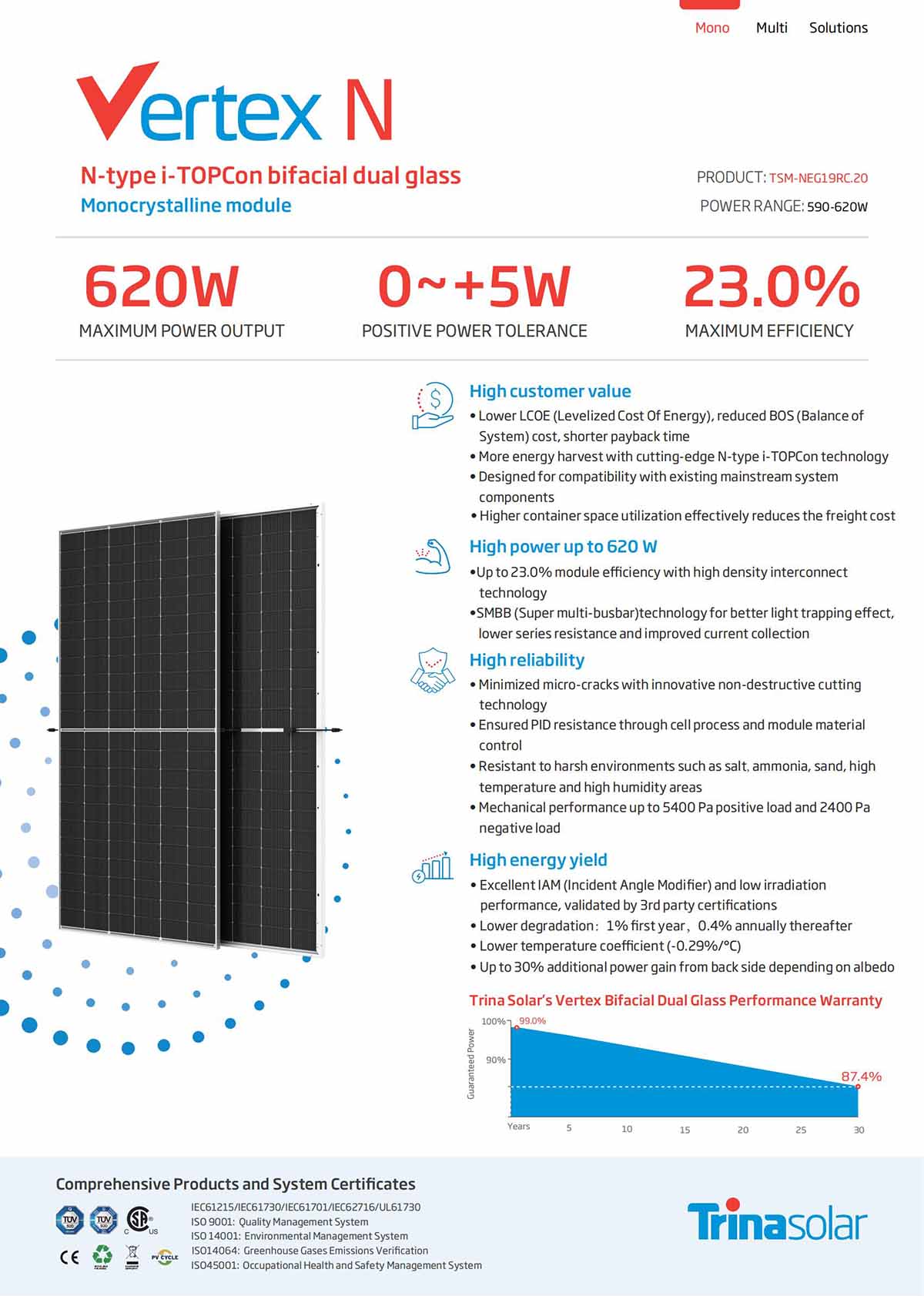

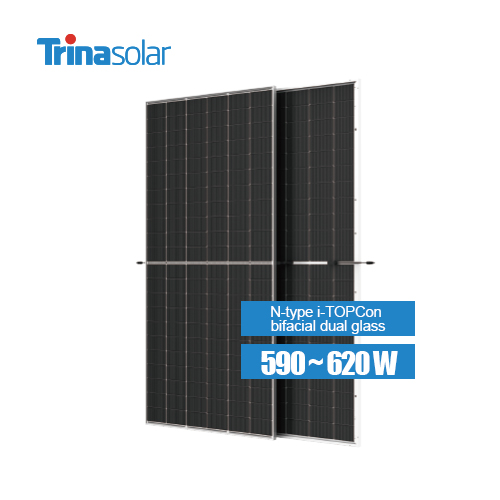

TSM-590-620NEG19RC.20

High customer value

Lower LCOE (Levelized Cost Of Energy), reduced BOS (Balance of System) cost, shorter payback time

More energy harvest with cutting-edge N-type i-TOPCon technology

Designed for compatibility with existing mainstream system components

Higher container space utilization effectively reduces the freight cost

High power up to 620 W

Up to 23.0% module eciency with high density interconnect technology

SMBB (Super multi-busbar)technology for better light trapping effect, lower series resistance and improved current collection

Highreliability

Minimized micro-cracks with innovative non-destructive cutting technology

Ensured PID resistance through cell process and module material control

Resistant to harsh environments such as salt, ammonia, sand, high temperature and high humidity areas

Mechanical performance up to 5400 Pa positive load and 2400 Pa negative load

Highenergyyield

Excellent IAM (Incident Angle Modier) and low irradiation performance, validated by 3rd party certications

Lower degradation：1% rst year，0.4% annually thereafter

Lower temperature coecient (-0.29%/°C)

Up to 30% additional power gain from back side depending on albedo
